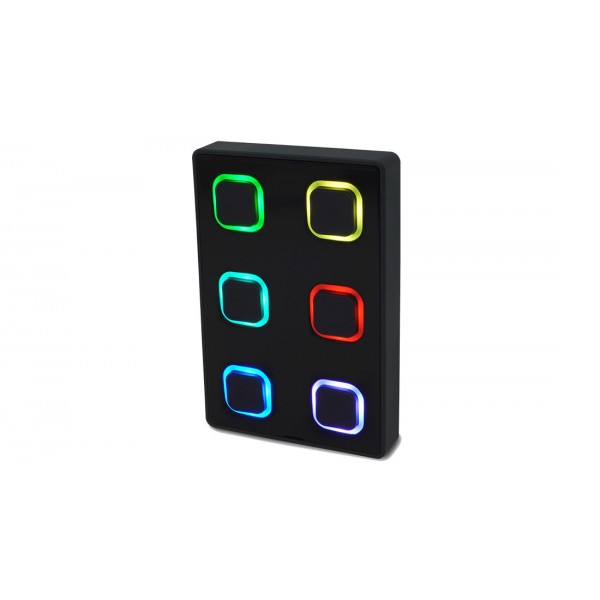

About: Visual Productions B-Station2 DMX Wall Mount Panel

Visual Productions B-Station2 Wall Mount DMX Board intended to offer a UI to your lighting project, the B-Station2 is a wall-mount board with 6 press buttons. A variety of control messages can be sent via DMX, UDP, OSC, Art-Net, or sACN from the buttons. The best tool for triggering lighting scenes stored in a CueCore2 or LPU-2 controller is the B-Station2.

RGB LED rings are attached to the push buttons. The LEDs can be freely programmed to represent the fixture's real-time color or to indicate which button or lighting scene is active to create an intuitive user experience. The feedback to the LED rings can be controlled with messages from protocols like DMX, UDP, OSC, Art-Net, or sACN.

Features

6 Push Buttons
RGB LED rings
Web-interface for programming
DMX-512 (ANSI E1.11) opto-isolated
RDM (ANSI E1.20)
Art-Net output and input
sACN output and input
UDP output and input
OSC output and input
TCP Input
Compatible with Kiosc
Power over Ethernet (class I)
32 fixtures in stand-alone
6 playbacks/zones in stand-alone
FX Generator

Model: VPBSTATION2

Visual Productions B-Station2 DMX Wall Mount Panel

Brands Visual Productions
Product Code:VPBSTATION2
Availability:In Stock
