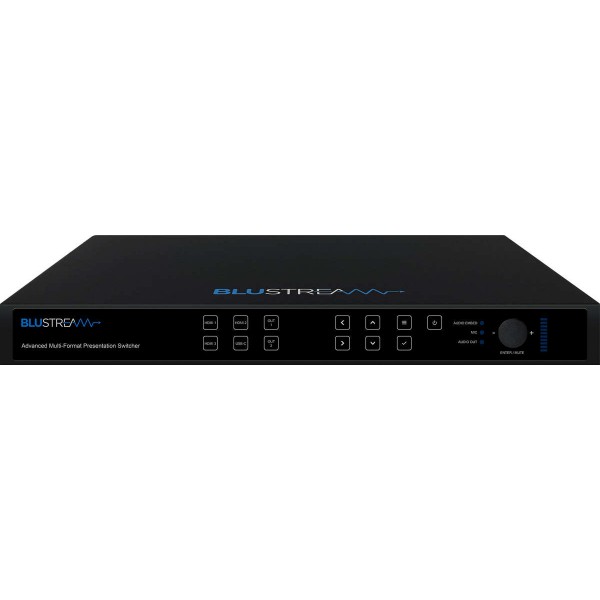

About: Blustream AMF42AU 4x2 Seamless Presentation Switcher

Blustream AMF42AU 4x2 Seamless Presentation Switcher provides enhanced features including seamless switching, independent video scaling on outputs, MIC input with audio mixing and 48V phantom power, PoC to power a Blustream compatible HDBaseT receiver. The AMF42AU also features Web GUI for control and configuration, source and display control via CEC, RS-232 and IR, manual or automated source selection, IR pass-through and control via front panel, IR, RS-232 and TCP/IP.

Features

3 x HDMI and 1 x USB-C inputs which can be independently routed to 2 x HDMI / HDBaseT™ outputs
Dual HDMI / HDBaseT™ on output 2
Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable up to 70m 1080p (4K up to 40m)*
Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification*
Independent video scaling on outputs
Supports resolutions up to 4K UHD 60Hz 4:4:4
Seamless source switching with manual or auto source selection
Supports USB Type C up to 4K UHD 60Hz 4:4:4, DP1.2 with 40W charging capability
Audio breakout to analogue L/R audio and Toslink (S/PDIF) digital outputs concurrently
ARC breakout available via S/PDIF when using RX70CS receiver
Analogue audio inputs and output support both balanced and unbalanced audio
Features MIC mixer over source audio with independent level adjustment
MIC input supports line level or 48V Phantom power
Configurable source and display control via CEC, RS-232 and IR
Web interface module for control and configuration of matrix
3rd party drivers available for major control brands
HDCP 2.2 compliant with advanced EDID management
