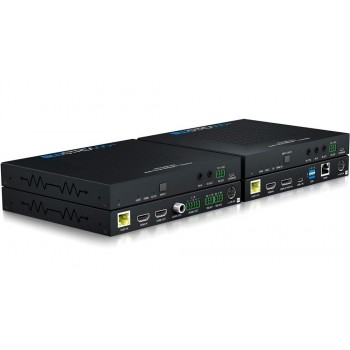

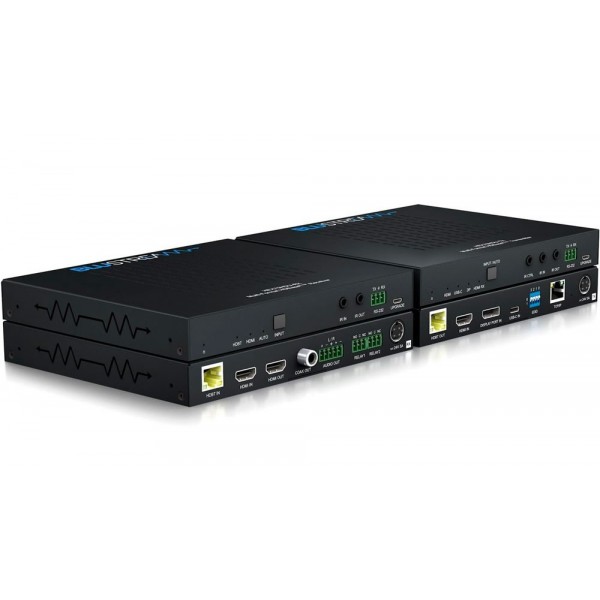

About: Blustream HEX70HDU-KIT Multi Format Presetation Switch Extender

Blustream HEX70HDU-KIT Multi Format Presetation Switch and Extender provides enhanced features including local HDMI input on the HDBaseT™ receiver for additional source input, Web GUI for control and configuration, auto display control, audio breakout, and bi-directional IR / RS-232 pass-through. The HEX70HDU-KIT features control via front panel, IR, RS-232 and TCP/IP, with advanced EDID and HDCP management.

Features

Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
1 x HDMI, 1 x USB-C and 1 x DisplayPort™ input on the HDBaseT™ transmitter with manual or auto source selection
1 x local HDMI input on the HDBaseT™ receiver for connection of a source local to the display
Supports 4K 60Hz 4:4:4 UHD video up to 40m
Extends HDMI 1080p up to a distance of 70m
Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
Supports USB Type C up to 4K UHD 60Hz 4:4:4* (DP1.2 with 60W charging capability)
Supports DisplayPort™ up to 4K UHD 60Hz 4:4:4, 4K 30Hz 4:4:4 DP1.2
Audio breakout to analogue L/R audio and Coaxial digital (S/PDIF) outputs concurrently
Supports bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end
Bi-directional IR pass-through
Auto display on / off feature allowing control of display at the HDBaseT™ receiver via CEC or RS-232
Web interface module for control and configuration of HEX70HDU-KIT
Control via front panel, IR, RS-232 or TCP/IP
Advanced EDID and HDCP management

Model: HEX70HDU-KIT

Blustream HEX70HDU-KIT Multi Format Presetation Switch Extender

Brands Blustream
Product Code:HEX70HDU-KIT
Availability:In Stock
