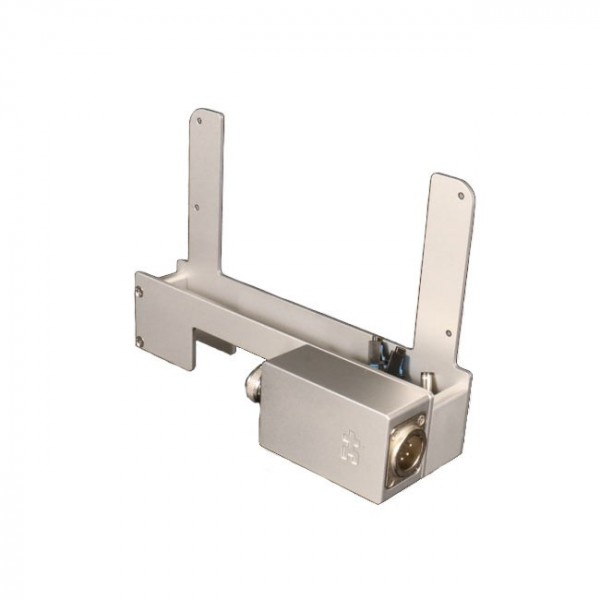

About: FieldCast Adapter One Plus

Adapter One Plus is identical to Adapter One, except for the extra four pin XLR chassis connector; now you can tap into an external battery and get a more robust and safe connection to your power supply. Adapter One Plus connects the FieldCast Cable straight to Blackmagic Design’s famous ATEM Camera Converter™, and completely and effectively protects the vulnerable fiber optic LC connections to the SFP of Camera Converter.

Adapter One Plus brings all advantages of Adapter One, and adds a four pin XLR chassis connector for tapping in your power supply or battery. Now you can go into the field with an extra battery pack to feed your Camera Converter or recharge its battery with power supplies that use standard XLR connectors! If you want to be sure that your Camera Converter has a tight, standard, low cost, available connection to external battery or power supply, go for Adapter One Plus. And if you want to keep your costs down maximally, substitute the laptop connector on your Camera Converter power supply for a female four pin XLR connector, and you can continue to use it.

Specifications
rugged milled out aluminum case, glass blasted and anodized
color coded and FieldCast 2Core SM Chassis Connector with D-size flange
custom FieldCast ultra short bend insensitive patching cable inside
standard single mode 9/125 fiber optic technology
standard PC polished LC Duplex connections to SFP
Neutrik NC4MD-LX 4-pin XLR chassis connector for extetrnal power supply
90 degree 5.5mm. OD x 2.5mm. ID power plug for connecting to unit
countersunk M3 20mm. mounting screws for connection to Camera Converter
dimensions: 200(L) x 133 (B) x 62 (H) mm.
weight 360 grams
product code: br005
