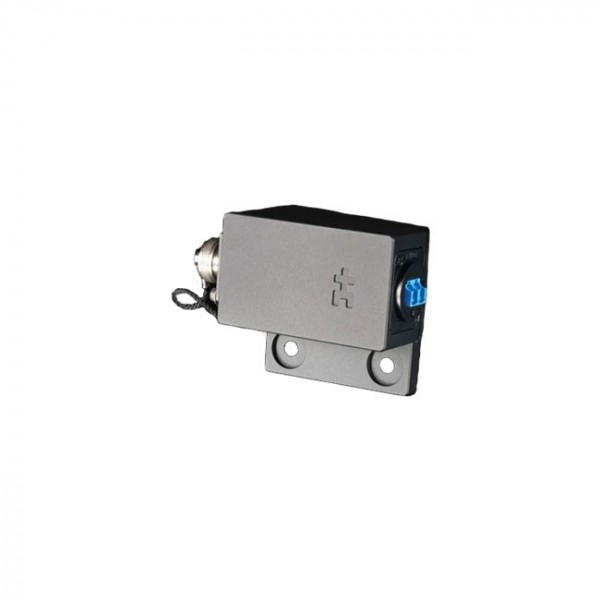

About: FieldCast Adapter Two

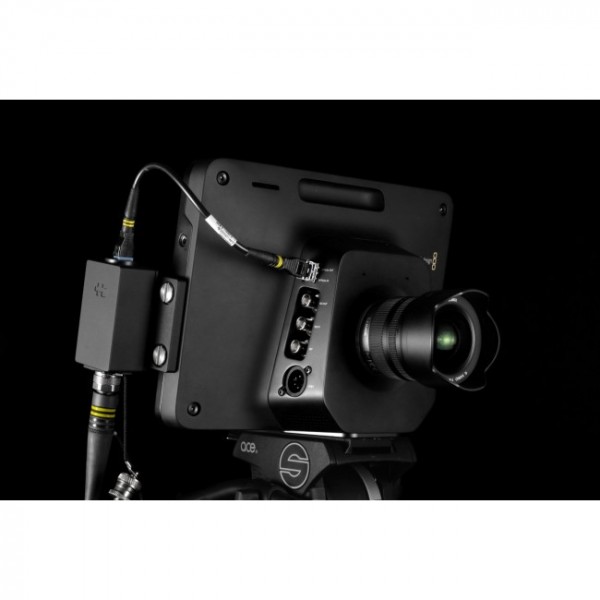

FieldCast Adapter Two bridges the gap between FieldCast fiber optic cable assemblies and Blackmagic Design Studio Camera™. It directly mounts to the side of the camera body and connects to the camera SFP with a short and flexible black LC Duplex bridging cable.

With Adapter Two you can transport your HD or 4K video back and forth and control all functions of your Studio Camera™ using only one slim and flexible FieldCast 2Core cable, whatever the distance!

Complete camera control over just one fiber optic cable

If you want to move your Studio Camera freely over the studio floor and make use
of all the advantages of ATEM camera control, you will have to use two independent
SDI connections for every single camera to make it all happen. Of course you can
do it with two rigid copper coax cables, but you also can contemplate to go for FieldCast

2Core and have one slim and flexible cable for every camera. Connect Adapter Two to your Studio Camera, and you have the most robust fiber optic connection possible, more robust even than the good old BNC connectors on your copper cable. Moreover, even with 4K video, you can go any distance you want and use the same Studio Cameras in the field without worries. Adapter Two is a fully passive device, bridging fiber to fiber in the most straightforward way possible, no special tricks. Just keep the connections clean and go.

Specifications
milled out aluminum case, glass blasted and anodized
color coded and FieldCast 2Core SM Chassis Connector with D-size flange
custom FieldCast ultra short bend insensitive patching cable inside
Senko LC Duplex connection with internal dust caps
30 cm. black LC Duplex patch cable for connecting to camera SFP
high bandwidth single mode 9/125 fiber technology
2 pairs of 1/4" screws for mounting with or without camera sunshade
dimensions adapter: 93 (L) x 45 (B) x 33 (H) mm.
weight including mounting plate 270 grams
belt clip, hex keys and instruction manual included
product code: br004
