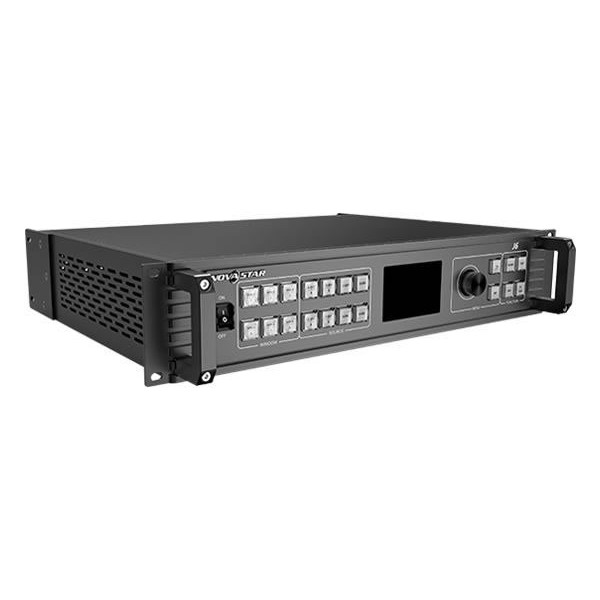

About: NovaStar J6 Multi-Screen Splicing Processor

NovaStar J6 Multi-Screen Splicing Processor supports 1× HDMI (or VGA, or DVI), 4 × DVI, 2 × SDI, and 1 × DualLink DVI (or HDMI 1.4, or DP1.1). Multiple video inputs can be overlapped and displayed on a display system composed by 4 screens after each of the input is scaled. J6 supports a wide range of inputs which can be spliced into a bigger picture.

Features

The input resolution of Input A supports 4K×2K@30Hz. Other inputs support 1920×1080@60Hz which are downward compatible.
Supports 5 × outputs, including 4 groups with 8 DVI connectors for splicing output, and 1 × HDMI preview output.
The preview connector supports preview of PVW, PGM and 8 × input signals.
Output resolution is settable. The splicing width of 4 channels can be up to 15360×600.
Up to 6 windows can be displayed simultaneously and the resolution of each window is up to 7680×1080@60Hz. J6 also supports one OSD of up to 4K×2K, which can be images or texts.
The window position, size, etc. are adjustable, and each window can be added with borders of custom color and widths.
Besides the 6 built-in preset templates, up to 16 user presets can be created and saved as templates. All the presets can be used directly and easily.
Provides 21 transition effects to enhance and present images with professional quality.
An intuitive color LCD on the front panel and clear button indicator lights simplify the system control operations.
Supports Genlock synchronization, allowing you to choose any input source or external synchronization signal to achieve vertical synchronization.
