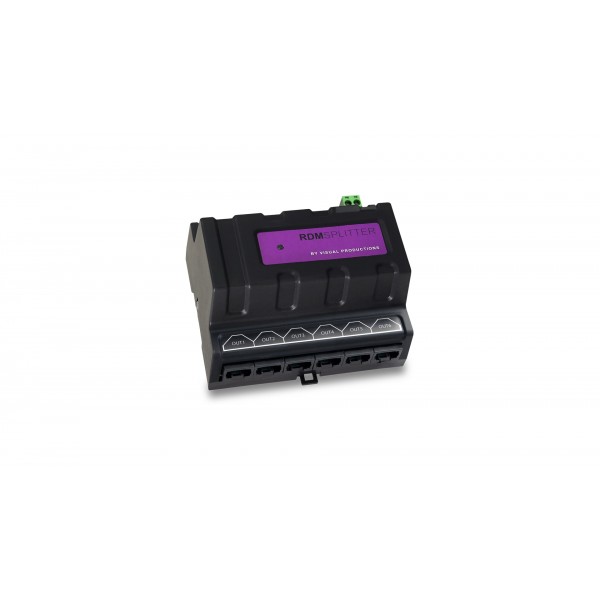

About: Visual Productions RDM DMX 6ch Splitter RJ45

Visual Productions DIN-Rail RDM DMX 6ch Splitter RJ45 widespread data protocol for lighting equipment is DMX-512. It is a very successful protocol with, however, a few limitations. The maximum number of attached devices is limited to 32 and a DMX cable should not be longer than 300 meters.

The RdmSplitter helps tackle those inconvenient limitations. The Splitter takes a DMX signal and sends it out again on its 6 DMX output ports. Each output port is capable of driving 32 more devices. The Splitter can also function as a signal booster as each port supports another 300 meter long connection.

Normally DMX requires fixtures to be connected in bus-topology having one cable running via each device. The RdmSplitter allows a star-topology for efficient cable usage. The DMX output ports are protected through optical isolation, safe guarding the splitter and its connected equipment against power surges and dangerous ground loops.

Features

6 Outputs with individual Optical Isolation RJ45 Terminals
DMX In (RDM Supported)
9-24VDC (PSU not Included)
Visual Productions DIN-Rail RDM DMX 6ch Splitter RJ45

Model: VPRDMSPLIT6-RJ45

Visual Productions RDM DMX 6ch Splitter RJ45

Brands Visual Productions
Product Code:VPRDMSPLIT6-RJ45
Availability:In Stock
